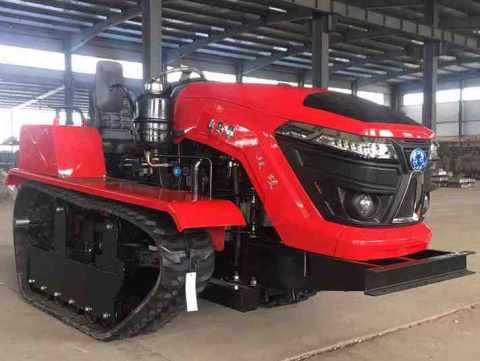

45HP 450 Crawler Tractor Technical Parameters
Size: 2.45 X 1.32 X 1.15m
Weight: 1500 kgs
Ground Clearance: 220-600mm
Model: 40W91 450G33
Form: EFI, Inline, Water colling, Stroke
Engine
=====
Rated Power: 33.1KW
Fuel Oil: Diesel Oil
Rated Speed: 2400 RPM
Start Method: Electric Start
Steering Brake System
===============
Brake Steering
Brake System Type: Mechanical Brake
Rotate
=====
Clutch Type: Monolithic Single Acting
GearBox Type: Main Gear +8+2 gear
Gearbox Shift Type: Gear Shift
Walking Department
==============
Rack Form: Rigid Frame
Track Pitch X Number of Sections X Width: 230 - 300 width
Speed of each Gear: Machinery: High 0-9.2 Low 5-3
Working Equipment
=============
Lifter Type: Strong Rise and Fall
Tillage Depth Control method: Position Control (Hydraulic Control)
PTO Shaft Type: 720/540 RPM
Power Transmission Type: Dependent
PTO Spline and Outer Diameter: 8X38 / 6X35
Walking Speed: Maximum Speed 20km/h
