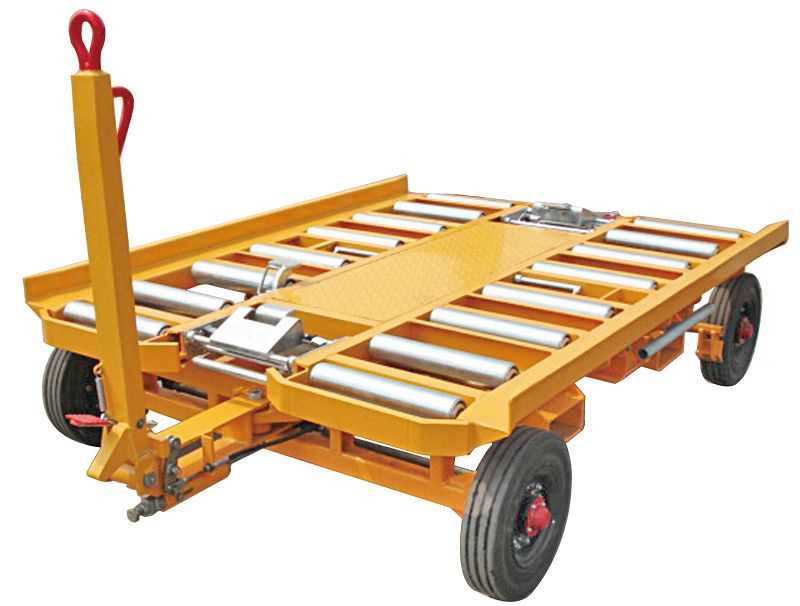

Overview:   Adopt the overseas technology and domestic airport application experience, with the elaborate design,it is reliable and durable,with reasonable layout and good shape.

Rotary table:   Welded of heavy duty channel steel and thick steel, 360 rotation,it can be fixed at the position of 90 through the footboard.

Roller:   The roller is made of seamless steel pipes,connected by bearings at two ends,due to galvanizing treatment,the container can move smoothly on its surface.

Steering mechanism:   With steering joints and lateral drawbar for the change of direction for front wheel, the vehicle can turn with easily and flexibly.

Rear tow-hook:  Operated conveniently, with self-locking device, there is no throw-off-hook caused by the vibration during travel.

Tyre: Adopt domestic renowned rubber solid tyre, the loading capacity is higher with better wearing resistance and longer long service life.

Braking mechanism: Connected by flexible shaft for brake, the brake system can be activated once erect or lay down the drawbar.

Surface treatment:  Anti-rust paint, primer and top finish are applied after the integral shot-blasting. Surface zinc spraying is the alternative option.
