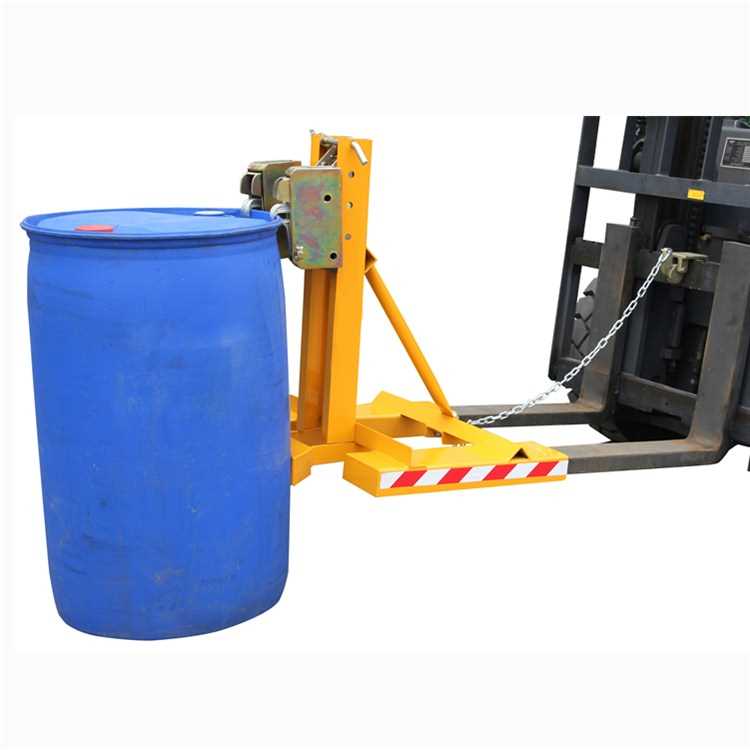

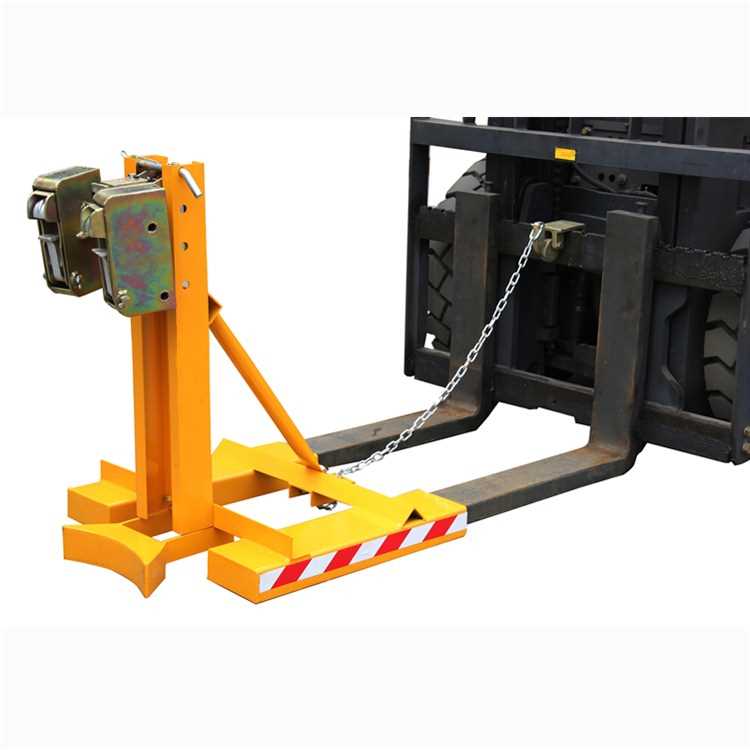

Fork Mounted Drum Grabbers Drum Gripper DG360B



Fork Mounted Drum Grabbers Drum Gripper DG360B

Feature of Drum Grabs DG360B:

1 drum grab / lifter with Double Eagle Gripper

- Grab, lift, move and place drums without the operator leaving driver's seat;

- Completely Mechanical and Automatic drum grab requires no hydraulic or electrical connections;

- Automatic clamping mechanism for handling steel and plastic drums in high volume applications

- Carriage mounted models are available to mount directly on the carriage of most lift trucks for tight aisle applications;

- Totally enclosed fork pockets with attached safety chain and cam lock secures the attachment to the lift truck.

Model: DG360B
Loading Weight: 360 Kgs X 1
Net Weight: 45 kgs

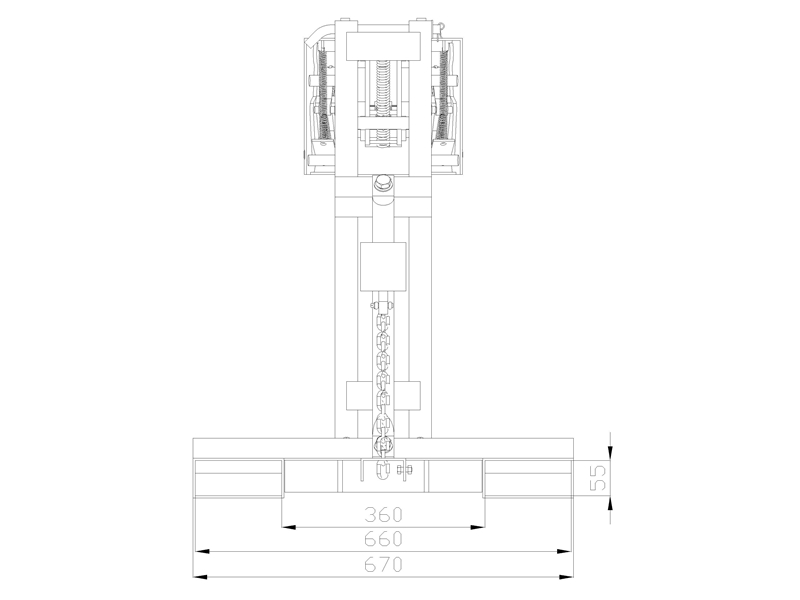

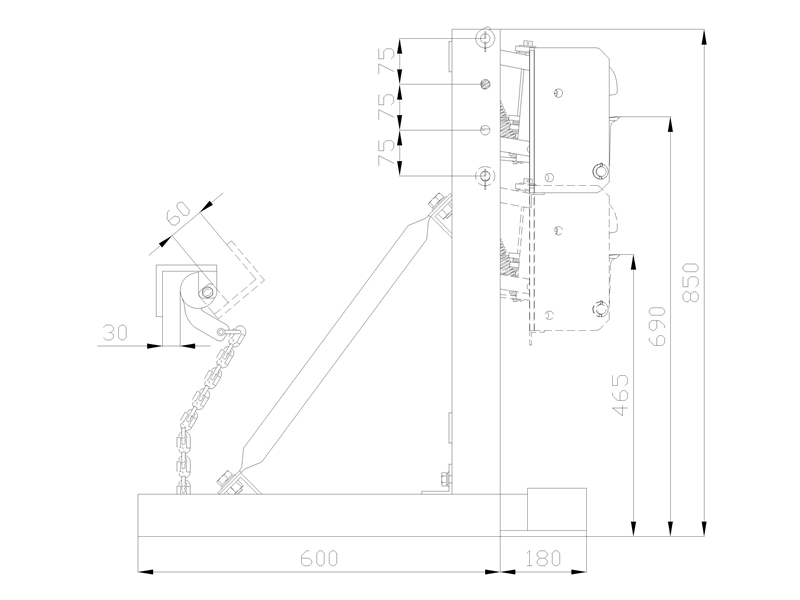

Outline Dimension: 780X670X850mm
Adjustable Eagle Gripper Height: 465-690mm
Single Fork Sleeve Size: 150 X 55mm
Outer Width of Double Fork Sleeve: 660mm
Fork Sleeve Length: 600mm
Fork Mounted Drum Grabbers Drum Gripper DG360B
Fork Mounted Drum Grabbers Drum Gripper DG360B
Fork Mounted Drum Grabbers Drum Gripper DG360B
Fork Mounted Drum Grabbers Drum Gripper DG360B
