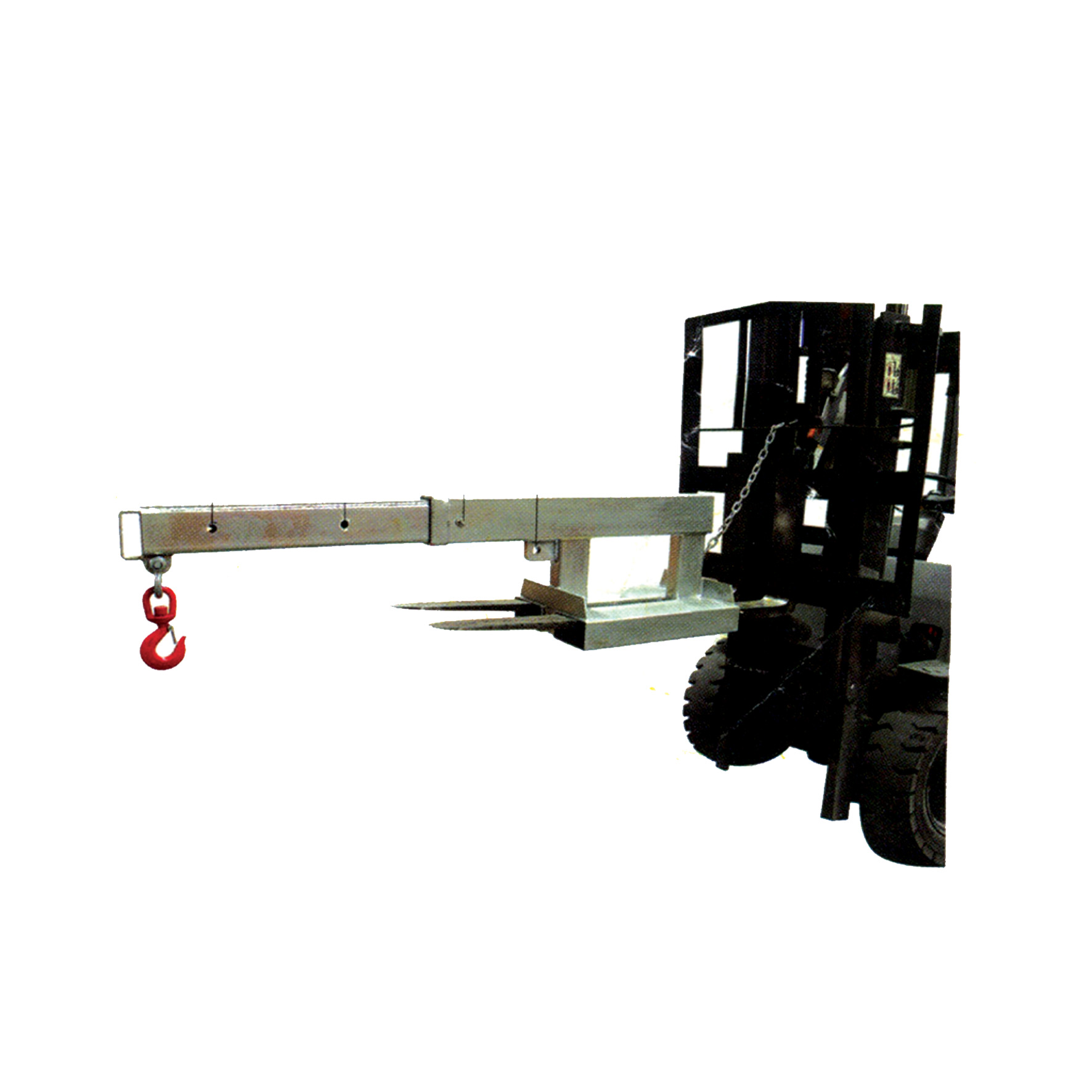

Telescopic Fork Mounted Jibs

Telescopic Fork Mounted Jibs

Model No: YL1547
Capacity: 4750 Kgs
Net Weight: 130 Kgs

Details:

1. Convert a forklift truck into a mobile crane to reach and transport long and awkward loads from inaccessible location;

2. Vertify load center of forklift truck;

3. With two locking screw and safety heavy chains to ensure fork not to shift or slip;

4. Applicable fork sectional size ≤180*75mm(W*T);

5. Supplied complete with one safety swivel hook with bow shackle & one rigid hook;

6. Zinc plated fork heels pin for safe forklift attachment;

Model No: YL1547 Telescopic Fork Mounted Jibs Specification:

Standard Fork Opening: 100mm
Fork Pocket: 180*60mm
Overall Size: 1300*475*500mm
Net Weight: 130kgs

Available Length Postions and Load Capacity for Model No: YL1547 Telescopic Fork Mounted Jibs

1) Length Postions 780mm , Load Capacity: 4750 kgs
2) Length Postions 1200mm , Load Capacity: 2400 kgs
3) Length Postions 1580mm , Load Capacity: 1800 kgs
4) Length Positions 1960mm, Load Capacity: 1500 kgs
