Sunnforest 1.6 Ton Container Dolly Specification


Specification of 1.6 Ton Container Dolly:

Overall Dimension: 3750mm x 1800mm x 560mm
Platform Dimension: 1928mm x 1600mm x 508mm
Loading: 1600kg
Turning radius: 3000mm
Roller size: C76 x 4mm
Tire size (front & rear): 380 x 120mm
Suitable for LD1, LD2 and LD3

Braking mechanism :
1) Tow bar upright for parking position and the brake are engaged
2) Tow bar down, the brake is released and dollies ready to be towed

Hot dip galvanizing or Painted (Custom Made according to your requirement)

Custom Made Container Dolly Available

Contact Us for more information.

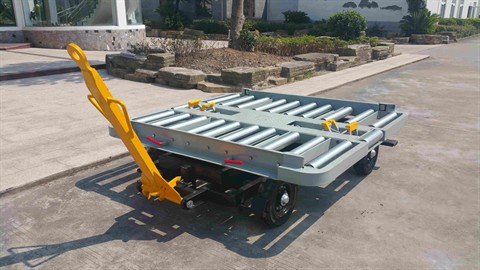

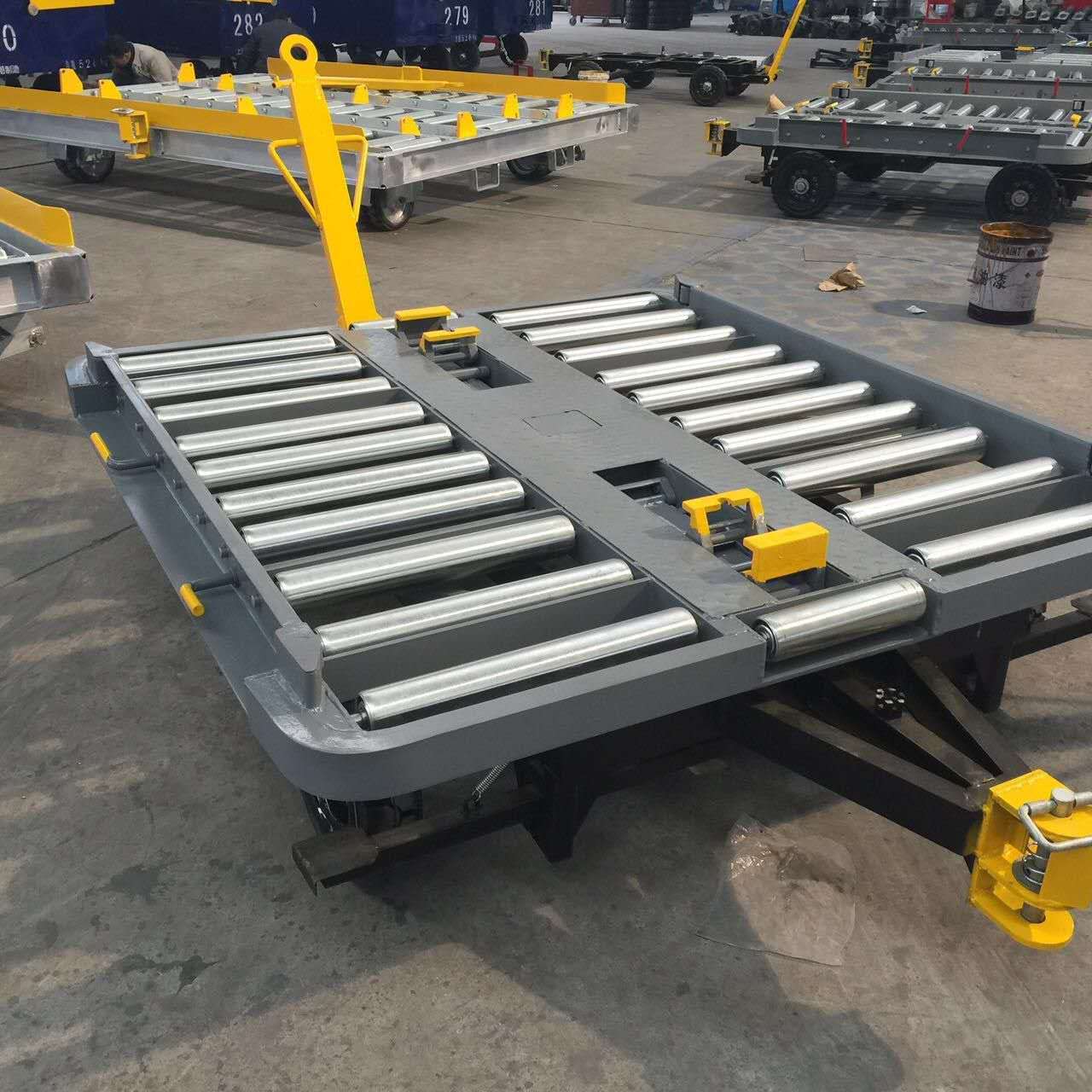

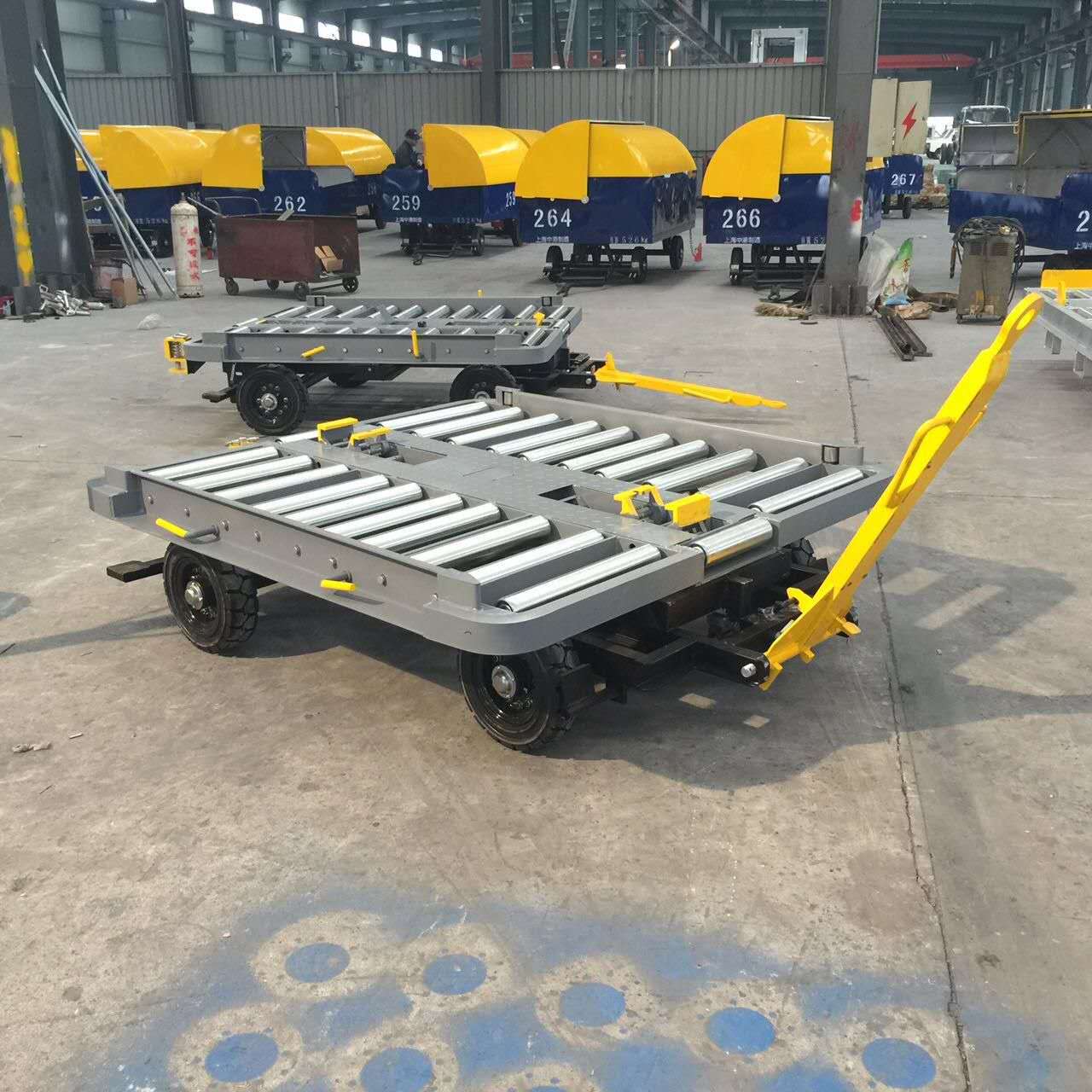

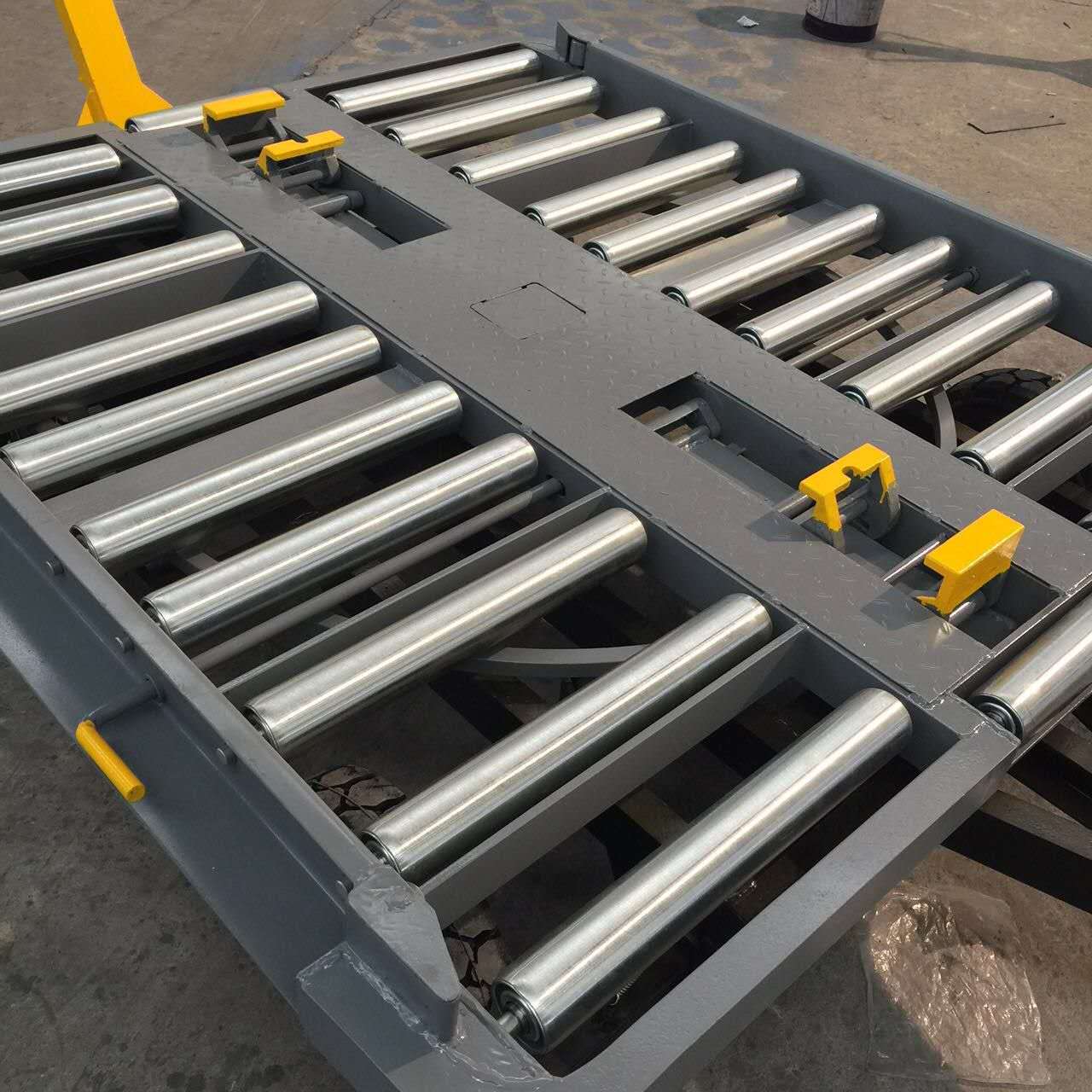

1.6 ton container dolly
1.6 ton container dolly
1.6 ton container dolly
sunnforest brand 1.6 ton container dolly
1.6 TON CONTAINER DOLLY VIDEO
