Sunnforest YLF Series Low Profile Lift Table

Heavy duty design with larger platform.

These tables achieve a low closed height, eliminating the need for a pit installation.

They are manufactured to all European safety standards including EN1570:1999.

Remote power pack with pedestal and controls, pretected to IP54.

Upper platform fitted with safety perimeter to prevent descent on contact with obstructions.

24V control box with UP and DOWN buttons and emergency stop.

External power pack equipped with a relief valve against overloading and a compensated

Flow valve for controlling lowering speed. Power supply are AC 380V/50HZ/3phase.

Hose burst safety valve to stop the lift table lowering in case of hose breakage.

Removable lifting eyes to facilitate handling and installation of the lift table.

Oil-less bushings on pivot points.

Loading ramp is a standard equipment

Model: YLF1001
Capacity: 1000 kgs
Lowered Height: 85mm
Raised Height: 860mm
Platform Size: 1450 X 1140mm
Lift Time: 25 sec

Model: YLF1002
Capacity: 1000 kgs
Lowered Height: 85mm
Raised Height: 860mm
Platform Size: 1600 X 1140mm
Lift Time: 25 sec

Model: YLF1003
Capacity: 1000 kgs
Lowered Height: 85mm
Raised Height: 860mm
Platform Size: 1450 X 800 mm
Lift Time: 25 sec

Model: YLF1004
Capacity: 1000 kgs
Lowered Height: 85mm
Raised Height: 860mm
Platform Size: 1600 X 800 mm
Lift Time: 25 sec

Model: YLF1005
Capacity: 1000 kgs
Lowered Height: 85mm
Raised Height: 860mm
Platform Size: 1600 X 1000 mm
Lift Time: 25 sec

Model: YLF1501
Capacity: 1500 kgs
Lowered Height: 105mm
Raised Height: 870mm
Platform Size: 1600 X 800 mm
Lift Time: 30 sec

Model: YLF1502
Capacity: 1500 kgs
Lowered Height: 105mm
Raised Height: 870mm
Platform Size: 1600 X 1000 mm
Lift Time: 30 sec

Model: YLF1502
Capacity: 1500 kgs
Lowered Height: 105mm
Raised Height: 870mm
Platform Size: 1600 X 1200 mm
Lift Time: 30 sec

Model: YLF2001
Capacity: 2000 kgs
Lowered Height: 105mm
Raised Height: 870mm
Platform Size: 1600 X 1200 mm
Lift Time: 35 sec

Model: YLF2002
Capacity: 2000 kgs
Lowered Height: 105mm
Raised Height: 870mm
Platform Size: 1600 X 1000 mm
Lift Time: 35 sec

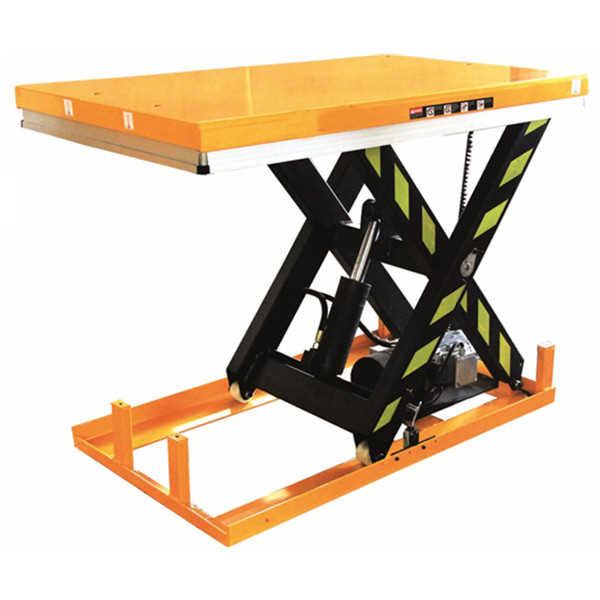

Sunnforest Low Profile Lift table of OF YLF Series e.g.YLF2001C, yLF1503C
Sunnforest Low Profile Lift table of OF YLF Series e.g.YLF2001C, yLF1503C
